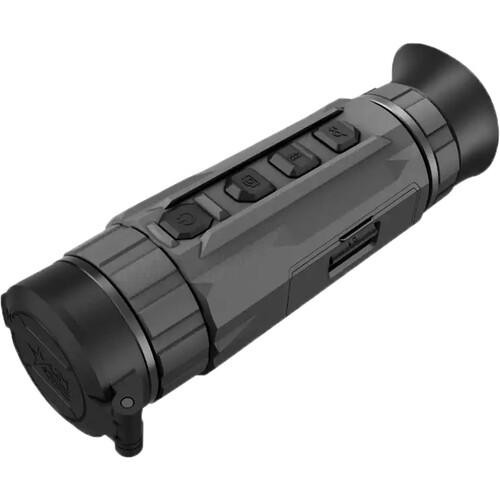

AGM Sidewinder TM50-640 Thermal Monocular 20mK 12 Micron 640x512 50 Hz

(No reviews yet) Write a Review

AGM Global Vision

Local taxes included (where applicable)

$3,088.98

Out of stock


Get Same Day Shipping in 20+ States
Easy Return Process
Need Guidance? Ask an Expert

The Sidewinder is AGM's premium handheld observational thermal monocular series. All models come equipped with either a 640×512 twelve micron infrared detector and a 1024×768 OLED display for improved color rendering. The Sidewinder thermal sensors also come equipped with the Most sensitive temperature ratings in its class coming in at sub-20 millikelvin across the entire product family. Other improvements over the Taipan monoculars include a more robust body/housing and a removable rechargeable 18650 battery. These units also boast an impressive waterproof rating which ensures users have peace of mind while utilizing these under the vast majority of weather conditions. The Sidewinders built-in 64 GB memory also sits at the top of its class on the market with advanced software supporting both video recording and image capturing. The primary uses for these thermal monoculars include but are not limited to: hunting law enforcement search-and-rescue personal security conservation anti-poaching camping hiking and different marine applications.

Optics Type:
Thermal Monocular
Thermal Digital Zoom:
1x 2x 4x 8x
Condition:
New
Thermal Detector Type:
Vanadium Oxide Uncooled Focal Plane Array
Warranty:
Mfg 5 Year
Thermal Sensor Frame (Refresh) Rate:
50 Hz
Thermal FOV Deg:
8.7� � 7.0�
Thermal Aperture:
F0.9
Battery Run Time:
5 hr
Optics Length:
7.9" (200mm)
Thermal Power Supply:
5 VDC/2 A 2.1 W
Weight:
1.4 lbs
Brand Family:
Sidewinder
Thermal Sensor Pixel Interval:
12 um
Thermal Operating Temperature:
-30�C to +55�C (-22�F to +131�F)
Thermal Standby Mode:
Yes
Thermal Response Waveband:
8um to 14um
Thermal Video Recording Resolution:
Yes
Waterproof:
IP67
Thermal Storage:
64 GB
Thermal Diopter Adj:
Yes
Thermal Snapshot Capture:
Yes
CA Prop 65:
Yes
Battery Count:
1
Thermal Optics Wi-Fi:
Yes
Thermal Human Detect Range:
2600 yds
Battery Type:
18650 Rechargeable
Thermal Display Resolution:
640 x 512
Brand:
AGM
Thermal Objective Lens (Focal Length):
50mm
Thermal Temp Spot Tracking:
yes
Thermal Imaging Palettes:
White Black Red Hot Fusion
Thermal Flat Field Correction:
Auto / Manual / External Correction
Thermal Magnification:
2.5-20x
Thermal NETD:
<20 mk
Color:
Black
Requires FFL:
False
